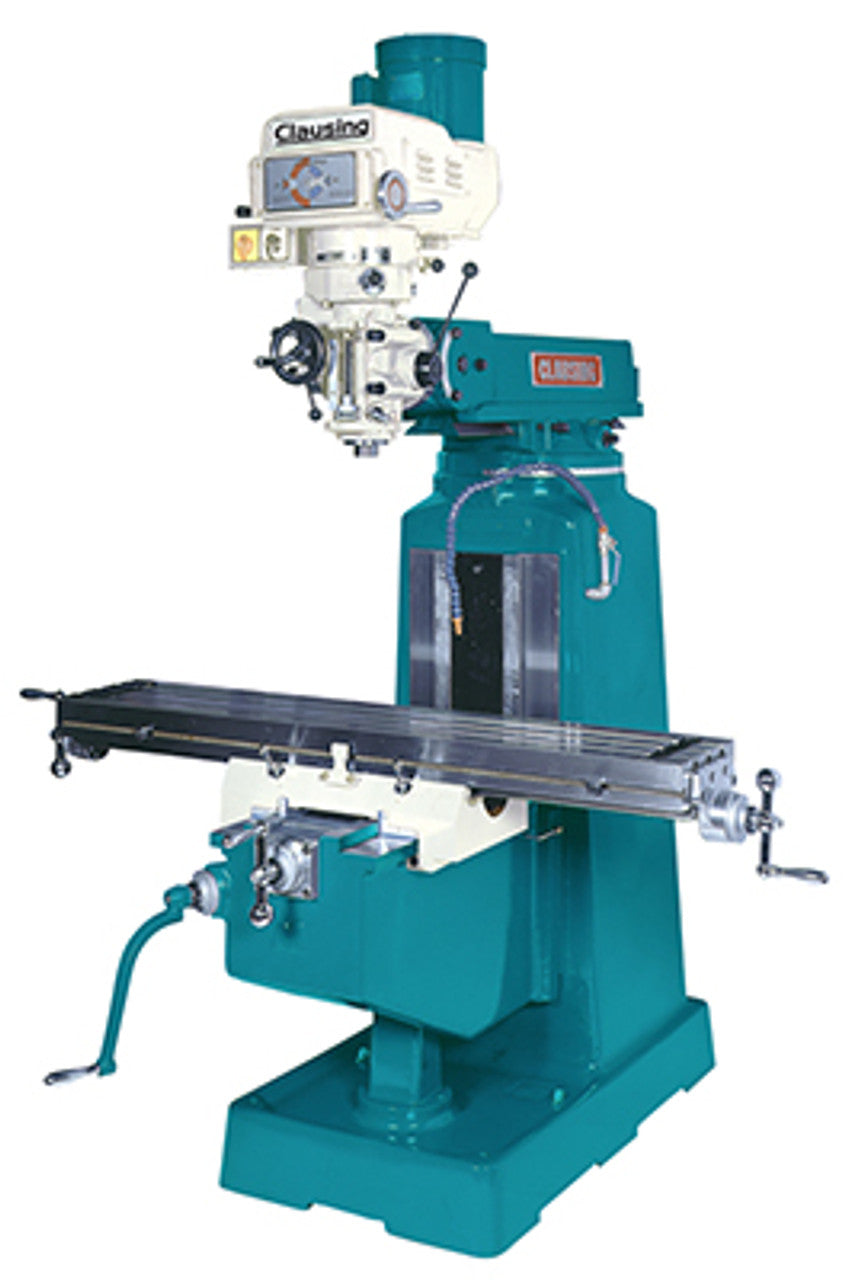

CLAUSING 2VS08-230V KNEE MILL

🔍 Key Features & Specifications

• Spindle: 3 HP motor, R8 taper, with manual variable-speed control via sheave pulley (range 60–4,300 RPM)

• Table: 9″ × 49″ with three 5/8″ T-slots; dovetail ways coated with Turcite B

• Travels: X=38.2″, Y=14.2″, Z (knee)=15″, ram travel=18.5″

• Quill: 5″ travel, 3.38″ diameter, hand‑wheel fine feed with .0015/.0031/.006 in/rev

• Construction: Meehanite castings, hardened & ground X/Y/Z ways, double-nut leadscrews, ABEC-7 spindle bearings

• Capacity: Table load ~665–700 lb; net weight ~2,100 lb; footprint approx. 99″ × 66″ × 89″ (W×D×H)

• Power: 3 ph voltage options (208/230/460 V), typical amp draw ~10 A @230 V

• PLEASE CALL FOR PRICING ON THIS ITEM
