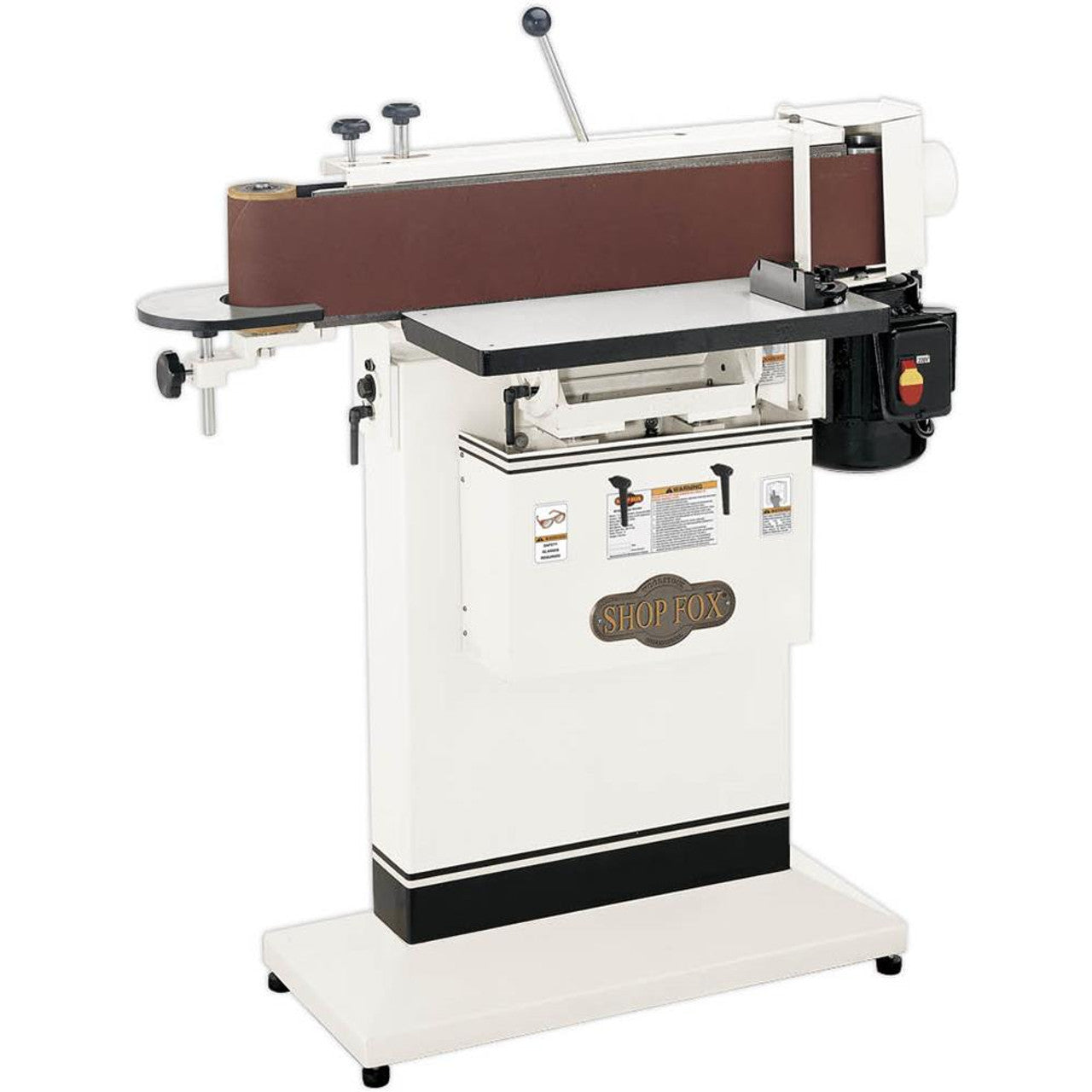

SHOP FOX W1688 EDGE SANDER

🛠️ Key Specifications

• Motor: 1.5 HP single-phase, pre-wired for 220 V (8 A) but convertible to 110 V (16 A) with proper plug/rewiring

• Belt Head Tilt: Adjustable 0–90°, with locking lever

• Tables:

  • Worktable: precision‑ground cast‑iron, 22″ × 10½″, with 5″ vertical travel Platen: graphite-coated, 6¾″ × 29¾″

• Rollers: 3⅜″ rubber idler and 4¼″ aluminum drive roller Dust Collection: Built-in dust hood with 4″ port Dimensions & Weight:

  • Footprint: 14½″ W × 29½″ L; overall: ~47″ W × 20″ D × 49″ H

  • Shipping weight ~311 lb (≈ 346 lb in some listings)Additional Features:

  • Quick-release belt tension lever, tracking & tension adjustment, spring-loaded table elevation, belt head tilt lock, shielded bearings, miter block, and a 2‑year warranty

  • PLEASE CALL FOR PRICING ON THIS ITEM
